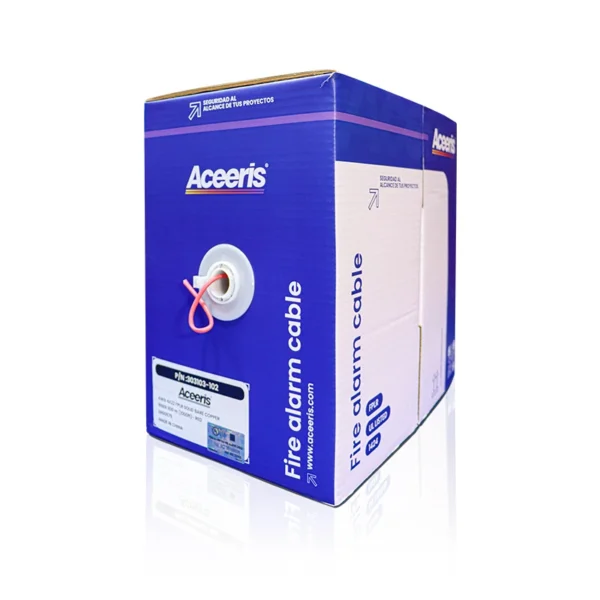

Fire Protective Signaling Circuits, Smokedetectors, Strobes / Sirens, Pull stations, Voice communications, Burglar alarms, Audio, control, initiating & notification circuits, Microprocessor / Addressable Controlled Systems. UL Subject 44, FPLR & UL 1424 & UL 13 & EN 50575. POWER- LIMITED FIRE ALARM CABLE 4X22 AWG SOLID UNSHIELD TYPE FPLR (UL) LISTED E528881 2024 / 1 – 300m.
CROSS SECTION
COLOR
| Insulation colors: | Black /Red /Green /Yellow |
| Jacket colors: | Red |
ESPECIFICACIONES
| Conductor | Solid Bare Copper |
| AWG | 22 |
| Conductor Dia Nom. | 0.62±0.02mm |
| Insulation | FPLR PVC |
| Average Thickness(±0.05mm) | 0.25 |
| Min. Point Thickness(mm) | 0.25 |
| Insulation ID(±0.2mm) | 1.12 |
| Cabling Lay Length(±10mm) | 80 – 120mm |
| Jacket | FRLR PVC |
| Average Thickness(±0.05mm) | 0.7 |
| Min. Point Thickness(mm) | 0.5 |
| Outer Dia.(±0.2mm) | 3.7±0.2mm |
